Medium 1-screw pan handle

$9.99

Material: Bakelite, stainless steel, aluminum

Includes: One handle + hardware set

Measurements: 5.1 in (130 mm) long overall, 4.3 in (110 mm) long Bakelite

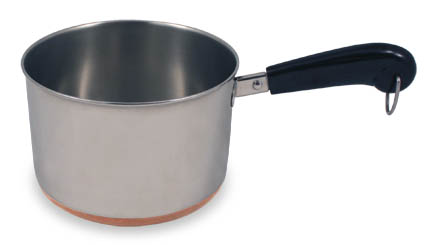

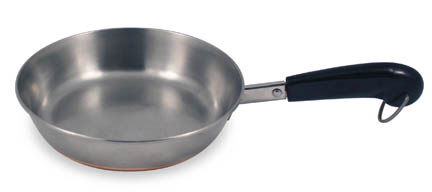

Fits: Newer style 1 1/2 quart and 2 quart sauce pans and handled steamer baskets, 7-inch and 7 1/4 inch skillets; both copper
bottom and tri-ply aluminum core varieties, and possibly others (definition of skillet, pan, etc. here).

These fit Revere Ware cookware with handles that have one screw through the metal part of the handle.  Please see the product details for more information.

In stock

Description

These are medium sized replacement handles for newer era Revere Ware pans.  Please use the information below and the pictures to make sure they will fit your cookware before you buy. These parts are newly manufactured by RevereWareParts.com and are made to look and work just like original Revere Ware handles.

Material: Bakelite, stainless steel, aluminum

Includes: One handle + hardware set

Measurements: 5.1 in (130 mm) long overall, 4.3 in (110 mm) long Bakelite

Fits: Newer style 1 1/2 quart and 2 quart sauce pans and handled steamer baskets, 7-inch and 7 1/4 inch skillets; both copper
bottom and tri-ply aluminum core varieties, and possibly others (definition of skillet, pan, etc. here). These fit Revere Ware cookware with handles that have one screw through the metal part of the handle.

Note that all sizes of this type of handle (small, medium, large, and x-large) have the same size metal spline at the end, so they will fit any pot that accepts this type of handle, although a large handle on a very small pot might be visually unappealing.  Please use the measurements above to insure you choose a proper size.

Replaces:  Revere called this handle style “Style No. 3” and “one-piece”.  The original Revere part number for this handle (medium size) was 36020.  It was also referred to as part number 481.

Hardware Notes

The screw in the hardware set is Phillips head, not slotted like some of the original Revere Ware screw sets were (most of these handles were riveted, not screwed on). Because the original slot head screws strip very easily, we consider this an improvement.

Bakelite Notes

Bakelite is a great heat resistant material, but it can be a bit brittle if mistreated.

It is generally not a good idea to put Bakelite parts in the oven; it can make them dull or in some cases crack.  We do not offer our Bakelite parts as oven-safe.

It is generally not a good idea to put Bakelite parts in the dishwasher; the soap will eventually dull and dry out the surface of the Bakelite.  We do not offer our Bakelite parts as dishwasher-safe.

Installation Notes

The only slightly difficult part about replacing these handles is removing the rivet holding the old handles on.  Please see our removal guide for help with this.

Additional information

Weight 3 oz
Dimensions 5 x 2 x 1 in
